CADDOCK High Performance Film Resistors

High Resistance Resistors

• 1 Megohm to 10 Gigohms
• TC from 2 ppm/°C to 80 ppm/°C • High Stability • Tolerance of 1% to as tight as 0.01%

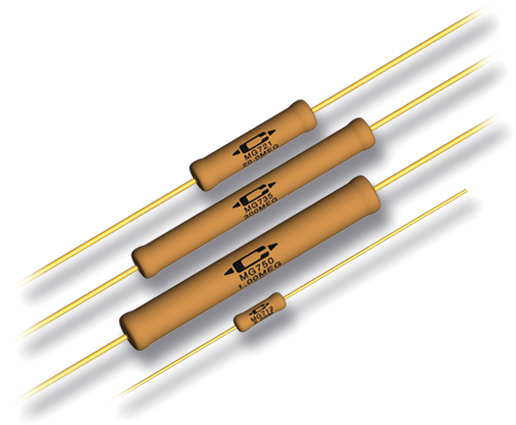

Type MG Precision High Voltage Resistors

Resistance up to 10 Gigohm

  • Tolerances as tight as 0.10%
  • TC: 80 ppm/°C
  • Voltage Ratings up to 48 KV
Type MG Precision High Voltage Resistors Download Datasheet (pdf)

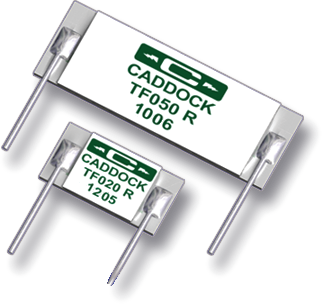

Type TF Low TC Ultra-Precision Film Resistors

Resistance up to 125 Megohm

  • Tolerances as tight as 0.01%
  • TC: 5 ppm/°C, 10 ppm/°C, or
    15 ppm/°C
  • Voltage Ratings up to 1400 Volts
Type TF Resistors Download Datasheet (pdf)

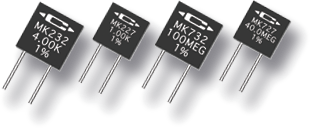

Type MK Compact Radial-Lead Precision Power Film Resistors

Resistance up to 100 Megohm

  • Tolerances as tight as 0.10%
  • TC as low as 50 ppm/°C
  • Voltage Ratings up to 400 Volts
Type MK Resistors Download Datasheet (pdf)

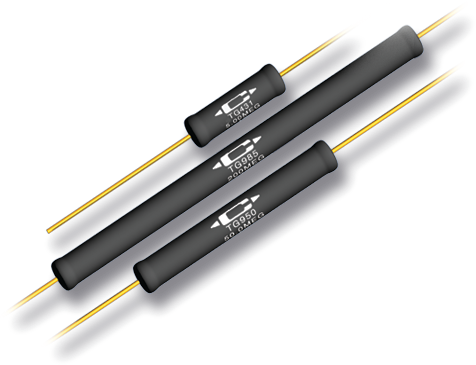

Type TG Low TC Precision High Voltage Resistors

Resistance up to 1 Gigohm

  • Tolerances as tight as 0.10%
  • TC: 25 ppm/°C
  • Voltage Ratings up to 48 KV
Type TG Resistors Download Datasheet (pdf)

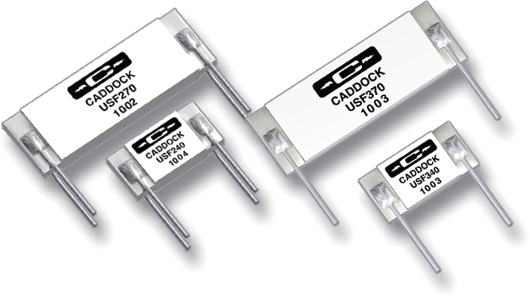

Type USF Low TC Ultra-Precision Film Resistors

Resistance up to 25 Megohm

  • Tolerances as tight as 0.01%
  • TC: 2 ppm/°C or 5 ppm/°C
  • Voltage Ratings: 300 Volts to 2500 Volts
Type USF Resistors Download Datasheet (pdf)
Type CHR High Resistance Precision Chip Resistors

Standard Resistance Values from 10 Megohm to 100 Megohm

  • Standard Tolerance: 1%
  • TC as low as 25 ppm/°C
  • Voltage Rating of 15 Volts
Type CHR Resistors Download Datasheet (pdf)

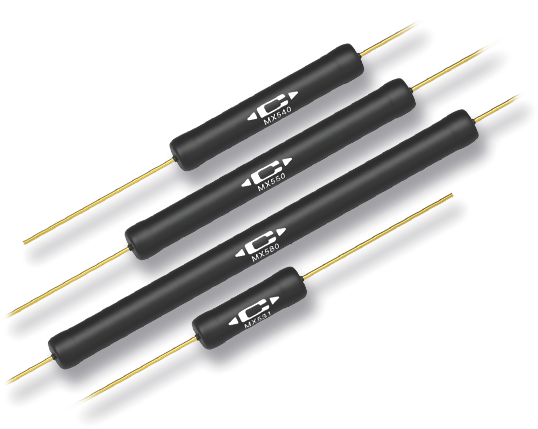

MX500 Series Precision High Voltage Resistor

Standard Resistance Values from
1 Megohm to 1 Gigohm

  • Tolerance: ±1% Standard
  • TC: 80 ppm/°C
  • Voltage Ratings up to 32 KV
MX500 Series Resistors Download Datasheet (pdf)

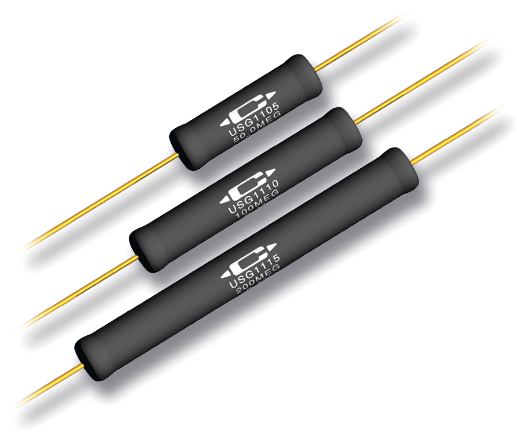

Type USG Ultra-Stable Low TC Precision High Voltage Resistors

Standard Resistance Values from
50 Megohm to 200 Megohm

  • Standard Tolerance of 0.10%
  • TC: 10 ppm/°C
  • Voltage Ratings up to 15 KV
Type USG Resistors Download Datasheet (pdf)
Type TK Compact Radial-Lead Low TC, Precision Film Resistors

Resistance up to 10 Megohm

  • Tolerances as tight as 0.05%
  • TC: 5 ppm/°C (up to 1 Meg), 10 ppm/°C or 20 ppm/°C
  • Voltage Ratings up to 300 Volts
Type TK200 and TK700 Resistors Download Datasheet (pdf)
