Current Sense Resistors

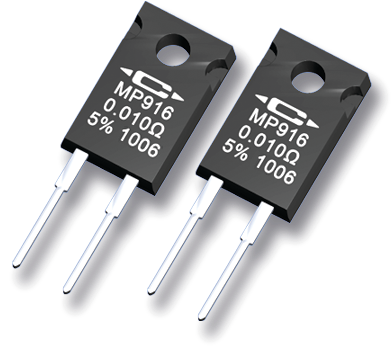

• Resistance as low as 0.010 ohm at ±5%
• Heat sink mountable
• 16 watts (up to 40 amps) at 25°C case temperature
• Non-Inductive design

• 20 watts at 25°C case temperature derated to zero at +175°C
• Excellent high frequency performance
• Resistance to as low as 0.020 ohm at ±1%
• Non-Inductive design

• Compact footprint
• 1 watt and 2 watt versions at +70°C

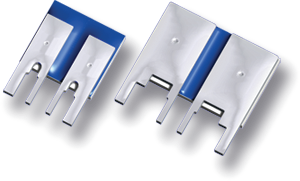

• Resistance to as low as 0.005 ohm at ±1%
• Four terminal (Kelvin) connections
• Non-Inductive design

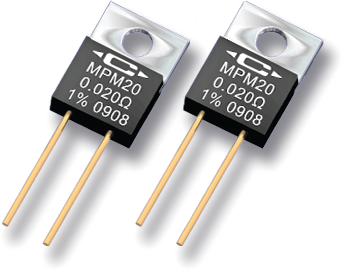

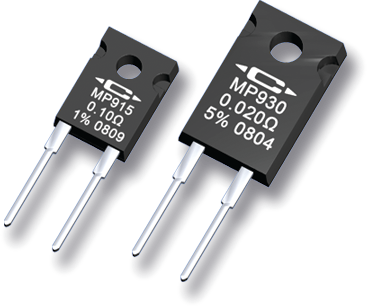

• Resistance as low as 0.020 ohm at ±5% and 0.050 ohm at ±1%
• Heat sink mountable
• 30 watts in TO-220 style package
  15 watts in TO-126 style package at 25°C case temperature
• Non-Inductive design

• Solderable thin gold lead finish

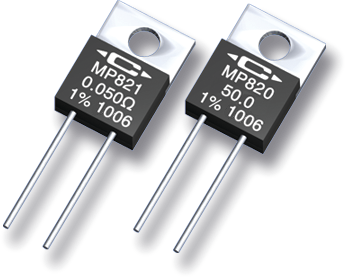

• 20 watts at 25°C case temperature derated to zero at +175°C
• Excellent high frequency performance
• Resistance range of 0.020 ohm to 10K at ±1%
• Non-Inductive design

WB version for Wire Bonding in Hybrid Applications
FC version for Flip Chip Mounting in SMT Applications

• Resistance as low as 0.020 ohm at ±5%
• Wire bondable version for heavy aluminum wire bonds
• Power ratings for WB versions up to 15 watts based on maintaining 25°C on the chip mounting surface
• Power ratings for FC version up to 1.5 watts at 70°C ambient
• Non-Inductive design

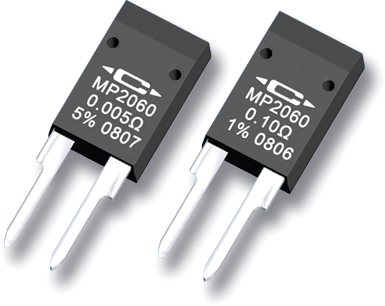

• Resistance as low as 0.005 ohm at ±5% 0.010 ohm at ±2% and 0.020 ohm at ±1%
• Up to 60 amps at 25°C case temperature for 0.005 ohm up to 0.015 ohm
• Up to 60 watts at 25°C case temperature for 0.020 ohm and above
• Non-Inductive design
• Heat sink mountable with clips

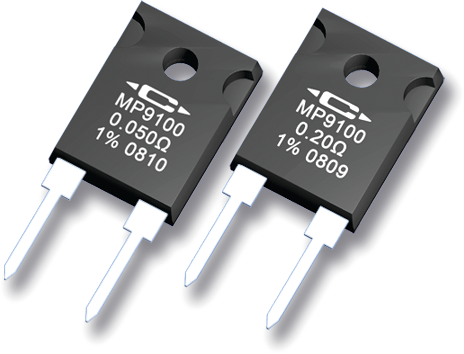

• 100 watts continuous power at 25°C case temperature
• Resistance range of 0.050 ohm to 100 ohm
• Equivalent to UL94-V-O flammability rating
• Excellent pulse/surge performance
• Electrically isolated case
• Non-Inductive design

WB version for Wire Bonding in Hybrid Applications
FC version for Flip Chip Mounting in SMT Applications

• Resistance as low as 0.010 ohm at ±5%
• Wire Bondable version with unique pedestal terminals to receive heavy aluminum wire bonds
• Power ratings for WB versions up to 20 watts based on maintaining +25°C on the chip mounting surface
• Flip Chip version for SMT applications
• Power rating for FC version up to 1.5 watts at 70°C ambient

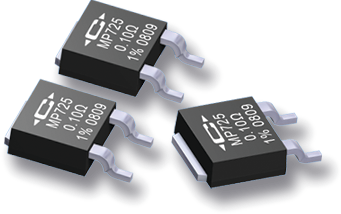

• 25 watts at 25°C case temperature derated to zero at +150°C
• Metal tab assists in post-soldering inspection
• Resistance range of 0.020 ohm to 1.00K
• Non-Inductive design

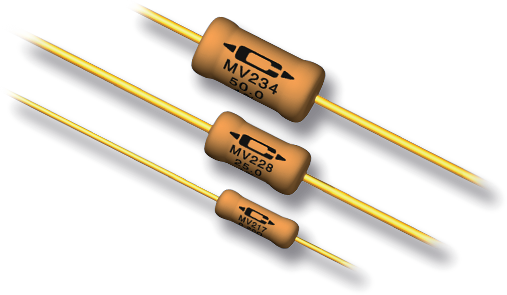

Resistance Range of 0.10 ohm to 50 ohms

• Power ratings from 1.5 watts to 10 watts
• Non-Inductive design
• Select from 5 models
• Tolerance 1% (5% and 10% are also available)
• Max. operating temperature of +275°C
