Precision High Voltage Resistors

Voltage Ratings from 600V to 48KV

• 80 ppm/°C, -15°C to +105°C, ref. +25°C
• Resistance range up to 10,000 Meg
• Select from 23 models
• Tolerance of 1% (available to 0.1%)
• Stability of 0.5% per 1,000 hours

TC of 25 ppm/°C, -55°C to +125°C Optional TC of 15 ppm/°C

• Resistance range 1.00 Meg to 1,000 Meg
• 7 Models with voltage ratings from 4 KV to 48 KV
• Voltage divider matched sets with ratio tolerance to 0.25% ratio TC to as tight as 10 ppm/°C
• Tolerance of 1% (available to 0.1%)
• Stability of 0.25% per 1,000 hours

Absolute TC of 10 ppm/°C, -40°C to +85°C

• Standard tolerance: ±0.1%
• Voltage ratings: 5 KV, 10 KV, and 15 KV
• Industry's lowest absolute TC:
  10 ppm/°C -40°C to +85°C, referenced to +25°C

Voltage Ratings from 1500V to 5000V

• Voltage division: 100:1 or 1000:1
• Low ratio TC: 5 ppm/°C or 10 ppm/°C -40°C to +85°C, referenced to +25°C
• Ratio tolerance: 0.05%
• Ratio voltage coeff.: As tight as 0.02 ppm/volt

Bolrage Ratings from 450V to 2000V

• Voltage division: 100:1 or 1000:1
• Low ratio TC: 2 ppm/°C -40°C to +85°C, referenced to +25°C
• Ratio tolerance: 0.025% or 0.01%
• Ratio voltage coeff.: as tight as 0.02 ppm/volt

Absolute TC: 2 ppm/°C Maximum

• Resistance range: 50 ohm to 10 Meg
• Voltage ratings: 300 Volts to 2500 Volts
• Max. absolute TC of 2 ppm/°C -40°C to +85°C, referenced to +25°C

Absolute TC: 5 ppm/°C Maximum

• Resistance range: 50 ohm to 25 Meg
• Voltage ratings: 300 Volts to 2500 Volts
• Max. absolute TC of 5 ppm/°C -40°C to +85°C, referenced to +25°C

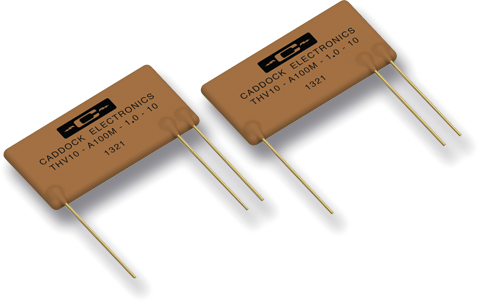

• Ratio TC of 10 ppm/°C or 25 ppm/°C from -55°C to +125°C
• Ratio tolerance of ±0.25%, ±0.5%, ±1.0% or ±2.0% at rated voltage
• Voltage rating of 10 KVDC or 15 KVDC at +125°C
• Voltage division of 100:1 or 1000:1 with custom ratios available

New Cost Efficient Design

• 80 ppm/°C, 0°C to +70°C, ref. +25°C
• Resistance range 1.00 Meg to 1,000 Meg
• 5 models with voltage ratings from 7.5KV to 32KV
• Tolerance: ±1% Standard
• Stability of 0.5% per 1,000 hours
