Voltage Dividers - Resistor Networks

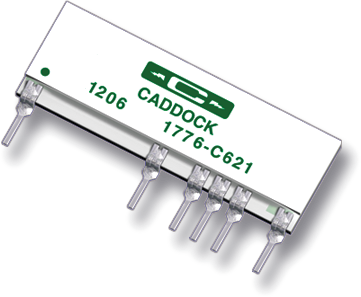

Type 1776 Precision Decade Voltage Dividers
  • Voltage Dividers for range switching instruments. Models with 3, 4, or 5 decade voltage division of 10:1 to 10,000:1
  • Ratio Tolerance 0.02%, 0.05%, 0.1%, 0.25%, or 0.5%
  • Ratio TC of 5, 10, 25, or 50 ppm/°C from 0°C to +70°C
  • Voltage Rating to 1,200 volts
 Type 1776 Precision Decade Voltage Dividers Download Datasheet (pdf)

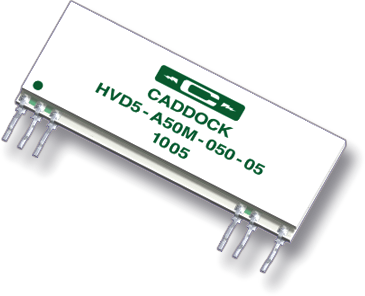

Type HVD Ultra-Precision Voltage Divider Networks
  • Voltage division: 100:1 or 1000:1 with voltage ratings of 1500, 2500, or 5000 volts
  • Low Ratio TC: 5 ppm/°C or 10 ppm/°C, -40°C to +85°C, referenced to +25°C
  • Ratio Tolerance: 0.05%
  • Ratio Voltage Coeff.: As tight as 0.02 ppm/volt
 Type HVD Ultra-Precision Voltage Divider Networks Download Datasheet (pdf)

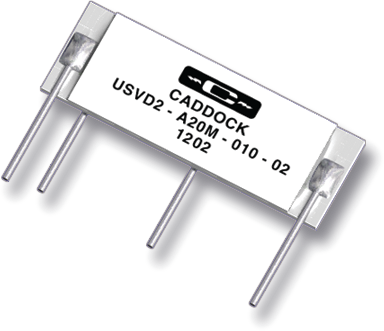

Type USVD Ultra-Precision Voltage Divider Networks
  • Voltage Division: 100:1 or 1000:1 with voltage ratings of 450, 650, 1400, or 2000 volts
  • Ultra Low Ratio TC: 2 ppm/°C, -40°C to +85°C, referenced to +25°C
  • Ratio Tolerance: 0.025% or 0.01%
  • Ratio Voltage Coeff.: As tight as 0.02 ppm/volt
 Type USVD Ultra-Precision Voltage Divider Networks Download Datasheet (pdf)
Type VMN Voltage Monitoring Resistor Networks
  • For Industrial Power Quality and Power Consumption Metering
  • High Stability when exposed to power line impulse voltage conditions
  • Total Resistance of 2 Meg, 5 Meg, or custom
  • Voltage Rating of 600 volts or 900 volts
  • Ratio TC of 10 ppm/°C or 5 ppm/°C from -40°C to +85°C
  • Ratio Tolerance of 0.1% to 0.02%
 Type VMN Voltage Monitoring Resistor Networks Download Datasheet (pdf)

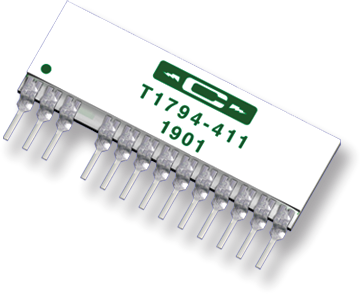

Type T1794 Custom Precision and Ultra-Precision SIP Resistor Networks
  • Resistance values from 1 ohm to 50 Meg
  • Custom Voltage Division
  • Absolute Tolerance from ±0.25% to ±0.025%
  • Ratio Tolerance from 0.1% to 0.01%
  • Absolute TC of 15 ppm, 25 ppm, or 50 ppm/°C
  • Ratio TC of 50 ppm, 25 ppm, 10 ppm or 5 ppm/°C
  • Operating Temperature of -40°C to +85°C
 Type T1794 Custom Precision and Ultra-Precision SIP Resistor Networks Download Datasheet (pdf)

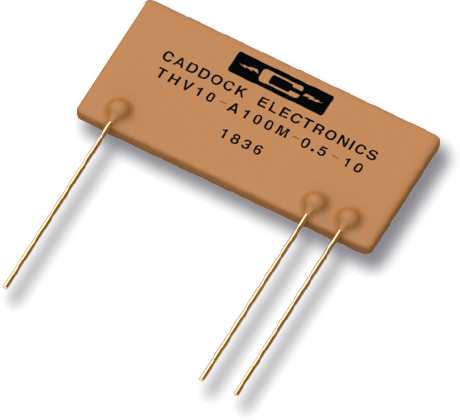

Type THV Precision High Voltage Divider Networks
  • Total Resistance of 100 Meg or 150 Meg
  • Voltage Rating of 10 KVDC or 15 KVDC at 125°C
  • Ratio TC of 10 ppm/°C or 25 ppm/°C from -55°C to +125°C
  • Ratio Tolerance of 0.25%, 0.5%, or 1.0%
  • Voltage Division of 100:1 or 1000:1 with custom ratios available
Type THV Precision High Voltage Divider Networks Download Datasheet (pdf)
